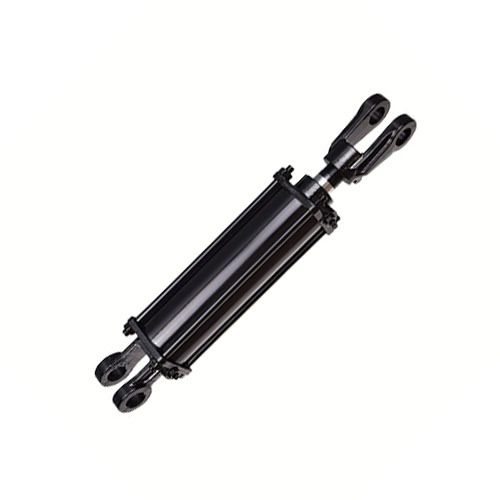

| A. R-Clip - Spr. steel, zinc plated (C-Clip optional) B. Clevis Pin - AISI 1045, zinc plated C. End Clevis - High-grade ductile iron cast D. Piston Nut - Heavy-duty, torqued, self-lock nut E. Piston - High-grade ductile iron F. Piston Rod - High tensile alloy steel, hard chromed. (Nitro-Piston Rod is available) G. Tube - Precision honed DOM 1020 material H. Tie - Rod - ASTM5140, high tensile, rolled threads I. Tie-rod Nut - High grade, Gr.10. J. Gland - High-grade ductile iron cast K. Rod End Clevis - High-grade ductile iron cast |
1. Tube Seal - Buna O-ring With a backup ring 2. Piston Seal - Hallite 755 type, rubber expander, With Wear Ring 3. Piston Id Seal - Buna O-ring 4. Rod Seal - Hallite605 Twin Lips Rod Seal 5. Rod Wiper - Hallite520 Rod Wiper Ports – SAE (NPT port or other can be available) Paint - Black (Custom colors are available) |
